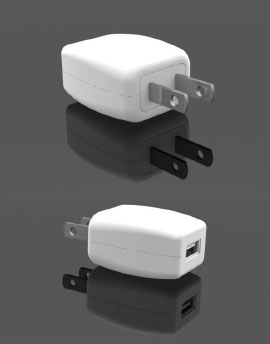

USB Chargers: MEC-PS (5 Watts AC Adapter)
MEC-PS-005 MEC-PS-006

Feature:

CEC V Efficiency Regulations Compliance
FCC Part B Compliance
Light Weight: 26g only
Over-Voltage Protective Installation
Short-circuit Protective Installation
Operating Temperature 0~45℃
Constant Current For Battery Charge
USB structure is available for +5V only
Suitable for iPhone

Feature:

CEC V Efficiency Regulations Compliance
FCC Part B Compliance
Light Weight: 26g only
Over-Voltage Protective Installation
Short-circuit Protective Installation
Operating Temperature 0~45℃
Constant Current For Battery Charge
USB structure is available for +5V only

MEC-PS-005 MEC-PS-006
MEC-PS-005 MEC-PS-006
Items Specifications
OutputDC 5V, 1A
Output Power5W Max.
Input VoltageAC 100~240V
Input Frequency50~60Hz
Input Current0.15A Max.
Inrush Current35A Max.
Line Regulation±10% Max.
Load Regulation±5%
Ripple & Noise< 200mVp-p
Efficiency LEVEL> 68.171% (LEVEL V)
Over-Voltage ProtectionAuto Recovery
Short-circuit ProtectionAuto Recovery
Operating Temperature0~45℃
Storage Temperature-25~75℃
SafetyUL, CUL, BSMI, LPS, CEC
EMC (EMI/EMS)FCC, BSMI
Items Specifications
OutputDC 5V, 1A
Output Power5W Max.
Input VoltageAC 100~240V
Input Frequency50~60Hz
Input Current0.15A Max.
Inrush Current35A Max.
Line Regulation±10% Max.
Load Regulation±5%
Ripple & Noise< 200mVp-p
Efficiency LEVEL> 68.171% (LEVEL V)
Over-Voltage ProtectionAuto Recovery
Short-circuit ProtectionAuto Recovery
Operating Temperature0~45℃
Storage Temperature-25~75℃
SafetyUL, CUL, BSMI, LPS, CEC
EMC (EMI/EMS)FCC, BSMI

Above specification is for reference only, please contact for details.
