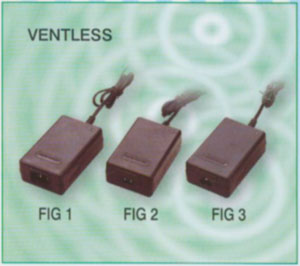

Power Supply: PSU30 Series

Desktop power supply

Feature:

Universal input voltage
Optional input inlets
Single Output
Pass LPS
Optional output connectors
Short circuit protection
High efficiency & reliability
Compact low profile package
One year warranty

Specifications: PSU30 Series
Input voltage 100-240 VAC (limits: 90-264VAC)
Input frequency 47 to 63Hz (Limits: 47-440Hx)
Input current 0.3A (rms) for 115VAC, 0.2A (rms) for 230VAC
Safety ground leakage current 0.25mA max @ 240 VAC 50Hz
Output voltage see rating chart (+/-5% tolerance)
Output current see rating chart
Output power range 27 Watts max
Ripple 1% peak to peak maximum
Over voltage protection Provided on outputs set at 112~132% of its nominal output voltage
Over current protection all outputs protected to short circuit conditions
Temperature coefficient all outputs +/-0.04% /oC max
Transient response max. excursion of 4% or better on all models recovering to 1% of final value within 500uS after a 25% step load change
Operating temperature 0oC ~ +40oC
Storage temperature  -40oC to +85oC
Relative humidity 5% to 95% non-condensing
Derating derated from 100% at +40oC to 50% at 70oC
Efficiency 65% minimum at full output
Hold-up time 5 msec minimum
Line regulation +/-1% maximum for any input voltage change between input voltage range
Load regulation +/-5% variation from minimum to maximum output current
Insulation resistance 50M ohm minimum from output to ground
Inrush current 15 AMPS at 115 VAC, or 30 AMPS at 230 VAC at 25oC cold start
Withstand voltage 4242 VDC from input to output
Meantime between failure 50,000 hours minimum at full load at 25oC ambient
Emi requirements meets conduction limits of(a)FCC part 15 Class B (b) CISPR 22.2
Safety requirements meets or exceeds:(a)UL 60950-1 (B)CSA C22.2 (C)TUV EN60950-1 (D)IEC60 950
Warranty 1 year

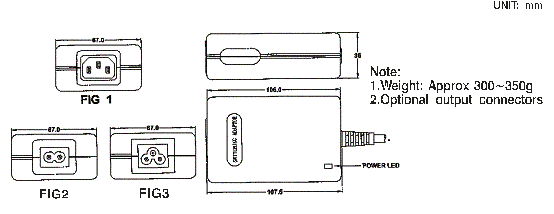

UNIT :mm

 **Please specify output voltage when ordering






Model Output Voltage Output Current Maximum Output Power INPUT INLET
PSU30A-0 3~5VDC 4.0~2.40A 12W FIG1
PSU30A-1 5~6VDC 4.0~3.30A 20W FIG1
PSU30A-1-1 6~8VDC 3.83~2.87A 23W FIG1
PSU30A-2 8~11VDC 3.25~2.36A 26W FIG1
PSU30A-3 11~13VDC 2.46~2.08A 27W FIG1
PSU30A-4 13~16VDC 2.08~1.69A 27W FIG1
PSU30A-5 16~21VDC 1.69~1.29A 27W FIG1
PSU30A-6 21~27VDC 1.29~1.00A 27W FIG1
PSU30A-7 27~33VDC 1.00~0.82A 27W FIG1
PSU30A-8 33~48VDC 0.82~0.57A 27W FIG1

Model Output Voltage Output Current Maximum Output Power INPUT INLET
PSU30B-0 3~5VDC 4.0~2.40A 12W FIG2
PSU30B-1 5~6VDC 4.0~3.30A 20W FIG2
PSU30B-1-1 6~8VDC 3.83~2.87A 23W FIG2
PSU30B-2 8~11VDC 3.25~2.36A 26W FIG2
PSU30B-3 11~13VDC 2.46~2.08A 27W FIG2
PSU30B-4 13~16VDC 2.08~1.69A 27W FIG2
PSU30B-5 16~21VDC 1.69~1.29A 27W FIG2
PSU30B-6 21~27VDC 1.29~1.00A 27W FIG2
PSU30B-7 27~33VDC 1.00~0.82A 27W FIG2
PSU30B-8 33~48VDC 0.82~0.57A 27W FIG2
Model Outpu??t Voltage Output Current Maximum Output Power INPUT INLET
PSU30C-0 3~5VDC 4.0~2.40A 12W FIG3
PSU30C-1 5~6VDC 4.0~3.30A 20W FIG3
PSU30C-1-1 6~8VDC 3.83~2.87A 23W FIG3
PSU30C-2 8~11VDC 3.25~2.36A 26W FIG3
PSU30C-3 11~13VDC 2.46~2.08A 27W FIG3
PSU30C-4 13~16VDC 2.08~1.69A 27W FIG3
PSU30C-5 16~21VDC 1.69~1.29A 27W FIG3
PSU30C-6 21~27VDC 1.29~1.00A 27W FIG3
PSU30C-7 27~33VDC 1.00~0.82A 27W FIG3
PSU30C-8 33~48VDC 0.82~0.57A 27W FIG3
