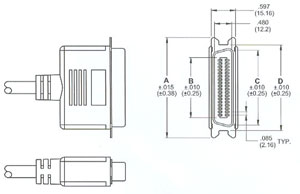

MODEL NO. |
NO. OF PINS/ CONTACTS |
DIMENSIONS
|
|
|
A |
B |
C |
D |
|

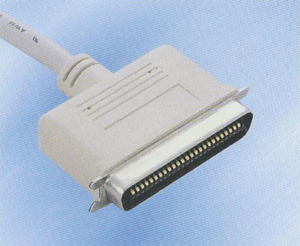

CM-50 |
50 |
3.044 (77.31) |
2.217 (56.32) |
2.542 (64.56) |
2.701 (68.61) |
|
CM-36 |
36 |
2.443 (62.04) |
1.622 (41.20) |
1.946 (49.43) |
2.100 (53.33) |
|
CM-24 |
24 |
1.935 (49.15) |
1.112 (28.25) |
1.436 (36.47) |
1.592 (40.43) |
|
CM-14 |
14 |
1.518 (38.56) |
0.687 (17.45) |
1.1012 (25.70) |
1.178 (29.93) |
|
|

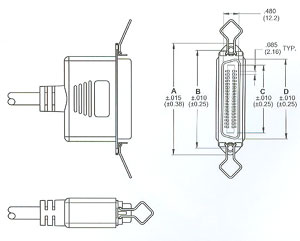

MODEL NO. |
NO. OF PINS/ CONTACTS |
DIMENSIONS
|
|
|
A |
B |
C |
D |
|

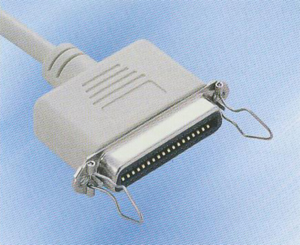

CF-50 |
50 |
3.268 (83.0) |
2.952 (74.98) |
2.233 (56.72) |
2.530 (64.26) |
|
CF-36 |
36 |
2.66 (67.5) |
2.350 (59.7) |
1.638 (41.6) |
1.935 (49.15) |
|
CF-24 |
24 |
2.16 (54.9) |
1.842 (46.8) |
1.127 (28.63) |
1.424 (36.17) |
|
CF-14 |
14 |
1.742 (44.25) |
1.429 (36.3) |
.702 (17.84) |
1.00 (25.4) |
|
|
