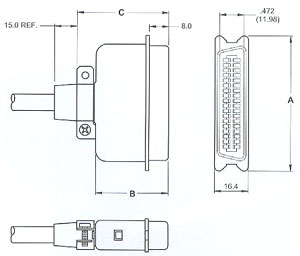

MODEL NO. |
NO. OF PINS/ CONTACTS |
DIMENSIONS
|
|
|
A |
B |
C |
CP-50 |
50 |
3.26 (82.8) |
1.00 (25.4) |
1.771 (45.0) |
CP-36 |
36 |
2.665 (67.7) |
.905 (23.0) |
1.67 (42.4) |
CP-24 |
24 |
1.915 (48.64) |
.843 (21.4) |
1.550 (39.4) |
CP-14 |
14 |
1.500 (38.1) |
.827 (21.0) |
1.540 (39.1) |
|

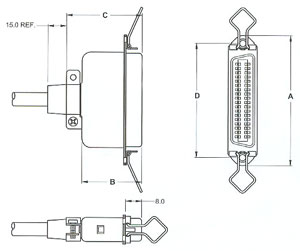

MODEL NO. |
NO. OF PINS/ CONTACTS |
DIMENSIONS
|
|
|
A |
B |
C |
D |
|
CS-50 |
50 |
3.26 (82.8) |
1.00 (25.4) |
1.771 (45.0) |
2.95 (74.9) |
|
CS-36 |
36 |
2.665 (67.7) |
.905 (23.0) |
1.67 (42.4) |
2.350 (59.7) |
|
CS-24 |
24 |
2.16 (54.9) |
.843 (21.4) |
1.550 (39.4) |
1.842 (46.8) |
|
CS-14 |
14 |
1.742 (44.25) |
.827 (21.0) |
1.540 (39.1) |
1.429 (36.3) |
|
|
