MODEL NO. |
NO. OF PINS/ CONTACTS |

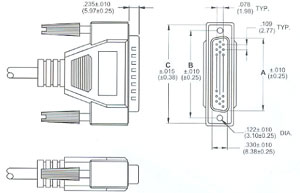

DIMENSIONS
|
|
|
A |
B |
C |

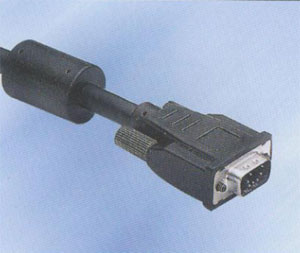

HDP-15 |
15 |
.663 (16.84) |
.984 (24.99) |
1.208 (30.68) |
HDP-26 |
26 |
.991 (25.17) |
1.312 (33.32) |
1.536 (39.01) |
HDP-44 |
44 |
1.531 (38.89) |
1.852 (47.04) |
2.083 (52.91) |
HDP-64 |
64 |
2.179 (55.35) |
2.499 (63.47) |
2.724 (69.19) |
|
MODEL NO. |
NO. OF PINS/ CONTACTS |
DIMENSIONS
|
|
|
A |
B |
C |

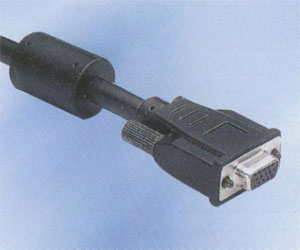

HDS-15 |
15 |
.642 (16.31) |
.984 (24.99) |
1.208 (30.68) |
HDS-26 |
26 |
.970 (24.64) |
1.312 (33.32) |
1.536 (39.01) |
HDS-44 |
44 |
1.510 (38.36) |
1.526 (47.04) |
2.083 (52.91) |
HDS-64 |
64 |
2.158 (54.81) |
1.852 (63.47) |
2.724 (69.19) |
|
