HIGH DENSITY CONNECTOR
Male Female

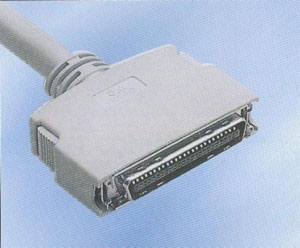

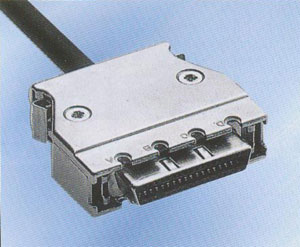

male HIGH DENSITY CONNECTOR female HIGH DENSITY CONNECTOR
male HIGH DENSITY CONNECTOR female HIGH DENSITY CONNECTOR

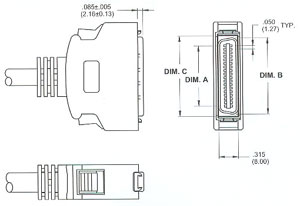

MODEL NO. NO. OF PINS/ CONTACTS

DIMENSIONS

    A B C
HM-20 20 .450
(11.43)
.639
(16.25)
.760
(19.25)
HM-28 28 .650
(16.51)
.840
(21.33)
.960
(24.33)
HM-36 36 .850
(21.59)
1.040
(26.41)
1.160
(29.41)
HM-50 50 1.200
(30.48)
1.390
(35.30)
1.510
(38.30)
HM-68 68 1.650
(41.91)
1.840
(46.73)
1.960
(49.73)

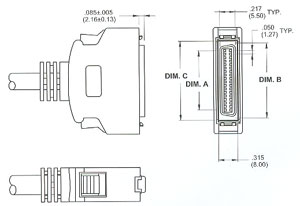

MODEL NO. NO. OF PINS/ CONTACTS

DIMENSIONS

    A B C
HF-20 20 .450
(11.43)
.639
(16.25)
.760
(19.25)
HF-28 28 .650
(16.51)
.840
(21.33)
.960
(24.33)
HF-36 36 .850
(21.59)
1.040
(26.41)
1.160
(29.41)
HF-50 50 1.200
(30.48)
1.390
(35.30)
1.510
(38.30)
HF-68 68 1.650
(41.91)
1.840
(46.73)
1.960
(49.73)
