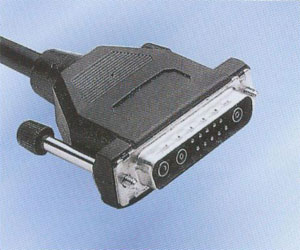

COAXIAL D-SUB CONNECTOR

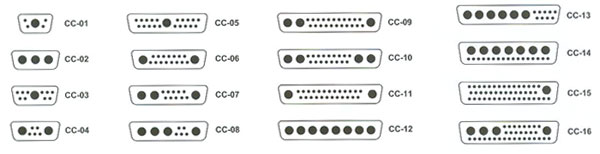

MODEL NO.
DIMENSIONS
A ±0.5
B ±0.25
C ±0.13
D ±0.25
E ±0.5
CC-01
30.8
16.90
24.99
8.34
12.6
CC-02
39.1
25.4
33.32
8.34
12.6
CC-03
39.1
25.4
33.32
8.34
12.6
CC-04
39.1
25.4
33.32
8.34
12.6
CC-05
53.0
39.01
47.04
8.40
12.6
CC-06
53.0
39.01
47.04
8.40
12.6
CC-07
53.0
39.01
47.04
8.40
12.6
CC-08
53.0
39.01
47.04
8.40
12.6
CC-09
69.3
55.47
63.5
8.40
12.6
CC-10
69.3
55.47
63.5
8.40
12.6
CC-11
69.3
55.47
63.5
8.40
12.6
CC-12
69.3
55.47
63.5
8.40
12.6
CC-13
69.3
55.47
63.5
8.40
12.6
CC-14
69.3
55.47
63.5
8.40
12.6
CC-15
66.9
52.86
61.11
11.16
15.4
CC-16
66.9
52.86
61.11
11.16
15.4
