CIRCULAR DIN CONNECTOR

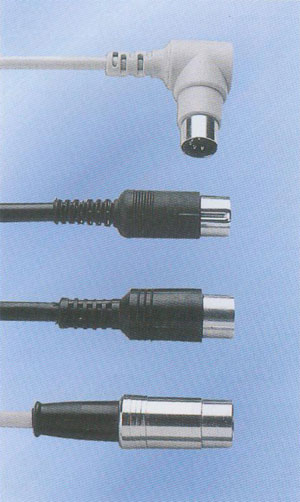

Male

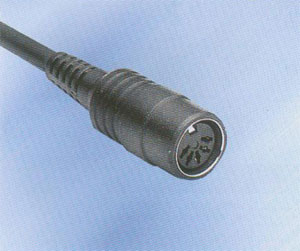

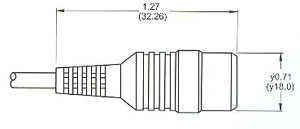

Female

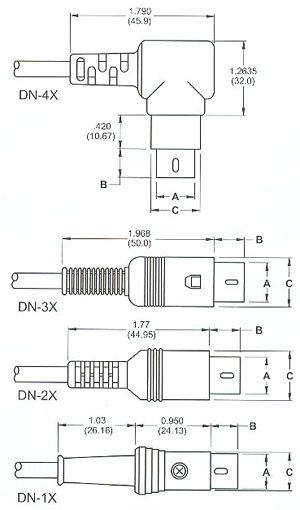

MODEL NO.
DIMENSIONS
A
B
C
DN-4X
.525
(13.33)
.390
(9.90)
.630
(16.00)
DN-3X
.520
(13.20)
.390
(9.90)
.630
(16.00)
DN-2X
.520
(13.20)
.380
(9.65)
.630
(16.00)
DN-1X
.532
(13.51)
.380
(9.02)
.570
(14.50)
Ex: DN-4X

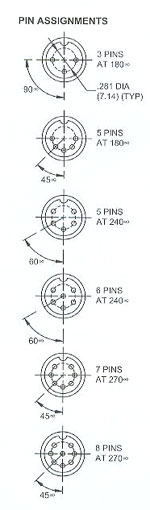

X: Number of Pin
MODEL NO.
DIMENSIONS
DJ-05
5 POS, AT 180
DJ-07
7 POS, AT 270
DJ-08
8 POS, AT 270
