MINI DIN CONNECTOR
MINI DIN ADAPTER

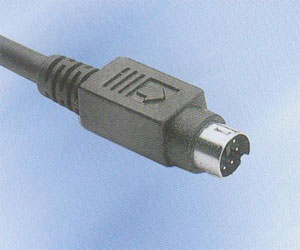

Male

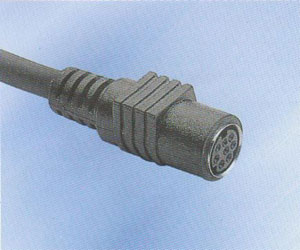

Female
MODEL NO.
DESCRIPTION
MD-8P
8 POSITION
MD-7P
7 POSITION
MD-6P
6 POSITION
MD-5P
5 POSITION
MODEL NO.
DESCRIPTION
MD-8S
8 POSITION
MD-7S
7 POSITION
MD-6S
6 POSITION
MD-5S
5 POSITION
MD-4S
4 POSITION
MD-3S
3 POSITION

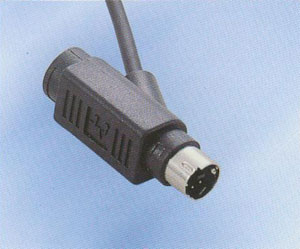

MINI DIN ADAPTER
Male/Female
MODEL NO.
DESCRIPTION

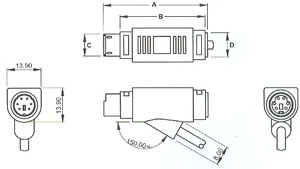

DIMENSIONS
A
B
C
D
MDA-8
8P to 8P
1.6835
(42.75)
1.378
(35.00)
0.3545
(9.00)
0.390
(9.90)
MDA-7
7P to 7P
MDA-6
6P to 6P
MDA-5
5P to 5P
MDA-4
4P to 4P
MDA-3
3P to 3P
