DC CONNECTOR AND PLUG
-
3 POS DC, 4 POS DC,
MULTI - POLE DC PLUG

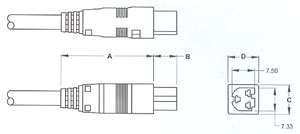

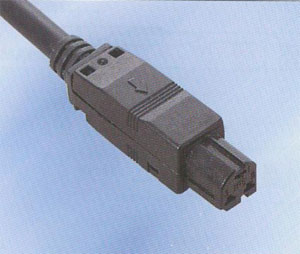

3 POS DC CONNECTOR
4 POS DC CONNECTOR
MODEL NO.
DESCRIPTION
DIMENSIONS
A
B
C
D
DC-3P-01
3 POS
1.1735
(29.80)
0.2955
(7.50)
0.3740
(9.50)
0.3935
(10.0)
MODEL NO.
DESCRIPTION
DIMENSIONS
A
B
C
D
DC-4P
4 POS
1.26
(32.0)
0.3545
(9.00)
0.4725
(12.0)
0.3545
(9.0)

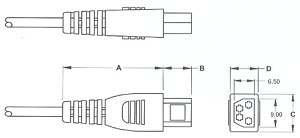

MULTI - POLE DC PLUG
MODEL NO.
DESCRIPTION
DIMENSIONS
A
B
C
D
ST-01

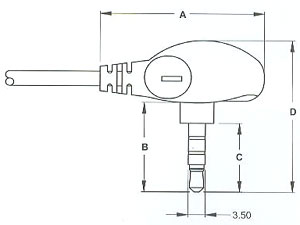

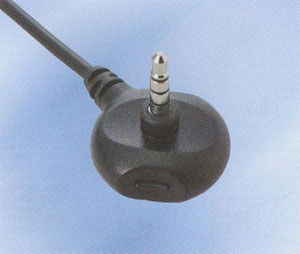

3.5 STEREO PLUG
1.333
(33.85)
0.709
(18.0)
0.551
(14.00)
1.2145
(30.85)
