CIGARETTE PLUG STANDARD, W/ INDICATOR, WITH DC/DC CONNECTOR, MINI SIZE

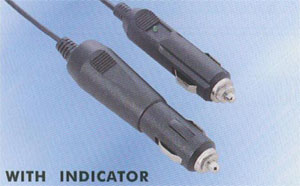

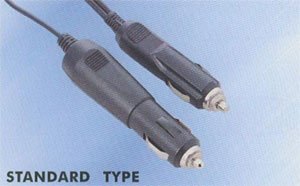

STANDARD TYPE WITH INDICATOR
MONO PLUG MONO JACK
MONO PLUG MONO JACK

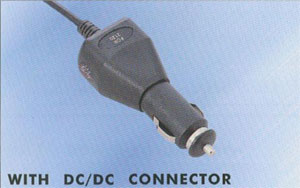

WITH DC/DC CONNECTOR MINI SIZE
DC/DC CONNECTOR CIGARETTE PLUG mini size CIGARETTE PLUG
dc/dc connector cigarette plug mini size
MODEL NO.

DIMENSIONS

  A B C

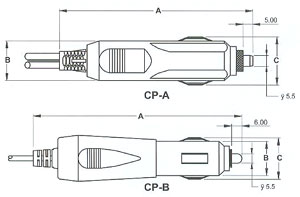

CP-A 3.8585
(98.00)
0.7875
(20.00)
0.9565
(24.30)
CP-B 4.8425
(123.0)
0.7875
(20.00)
0.957
(24.30)

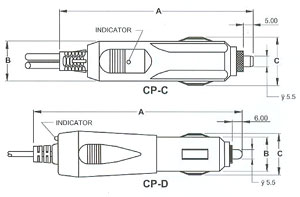

CP-C 3.8585
(98.00)
0.7875
(20.00)
0.9565
(24.30)
CP-D 4.8425
(123.0)
0.7875
(20.00)
0.957
(24.30)

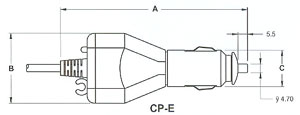

CP-E 4.1575
(105.60)
1.508
(38.30)
0.7875
(20.0)
CP-F 3.079
(78.20)
.8665
(22.0)
0.7875
(20.0)
CP-G 3.465
(88.00)
.8665
(22.0)
0.7875
(20.0)
