MULTI POLE CONNECTOR

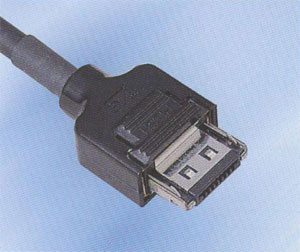

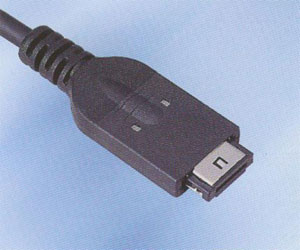

ASSEMBLY TYPE MOLDED TYPE
ASSEMBLY TYPE MULTI POLE CONNECTOR MOLDED TYPE MULTI POLE CONNECTOR
ASSEMBLY TYPE MULTI POLE CONNECTOR MOLDED TYPE MULTI POLE CONNECTOR

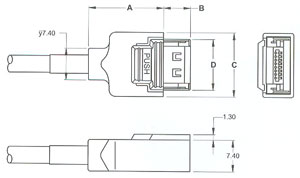

MODEL NO. NO. OF PINS/ CONTACTS

DIMENSIONS

    A B C D
MPC-08-01 8 0.709
(18.0)
0.268
(6.80)
0.5945
(15.10)
0.4765
(12.10)
MPC-10-02 10 0.827
(21.0)
0.268
(6.80)
0.6575
(16.7)
0.5395
(13.7)

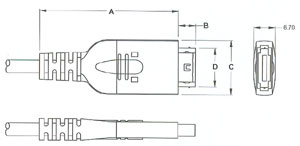

MODEL NO. NO. OF PINS/ CONTACTS

DIMENSIONS

    A B C D
MPC-08-03 8 1.683
(42.75)
0.2065
(5.25)
0.6695
(17.00)
0.4765
(12.10)
