DATA TRANSFER CONNECTORS -  SERIAL ATA, DVI,  80P CONNECTOR

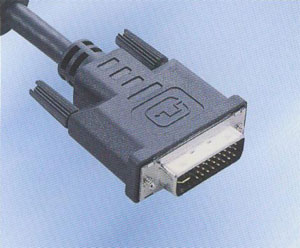

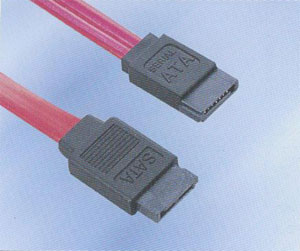

SERIAL ATA CONNECTOR DVI CONNECTOR
SERIAL ATA DVI
SERIAL ATA DVI

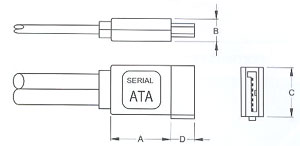

MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
S-ATA-1 7 POSITION 0.744
(18.9)		 0.240
(6.1)		 0.630
(16.0)		 0.2362
(6.0)
S-ATA-2 7 POSITION 0.622
(15.8)		 0.2362
(6.0)		 0.5118
(13.0)		 0.2362
(6.0)

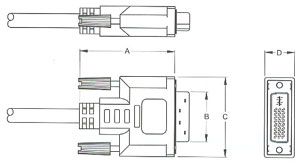

MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
MEC-DVI-01 7 POSITION 1.8705
(47.5)		 0.9845
(25.0)		 1.575
(40.0)		 0.5905
(15.0)

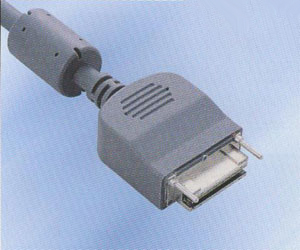

80P CONNECTOR

80P CONNECTOR

80P CONNECTOR

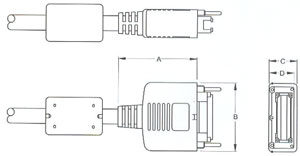

MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
MEC-80P-01 80 POSITION 1.811
(46.0)		 1.575
(40.0)		 0.6495
(16.5)		 0.571
(14.5)
