MODEL NO. |
LOADED CONTACTS |
CIRCUITS |
DIMENSIONS
|
|
|
|
A |
B |
C |
D |
E |

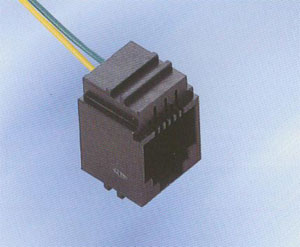

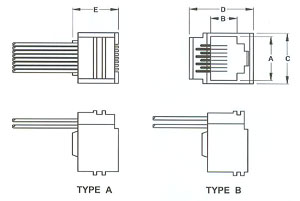

LMJ-6P2C-() |
6 POS |
2 |
9.90 |
7.0 |
13.75 |
17.5 |
12.5 |
LMJ-6P4C-() |
6 POS |
4 |
9.90 |
7.0 |
13.75 |
17.5 |
12.5 |
LMJ-6P6C-() |
6 POS |
6 |
9.90 |
7.0 |
13.75 |
17.5 |
12.5 |
LMJ-8P2C-() |
8 POS |
2 |
12.0 |
7.0 |
13.75 |
17.5 |
12.3 |
LMJ-8P4C-() |
8 POS |
4 |
12.0 |
7.0 |
13.75 |
17.5 |
12.3 |
LMJ-8P6C-() |
8 POS |
6 |
12.0 |
7.0 |
13.75 |
17.5 |
12.3 |
LMJ-8P8C-() |
8 POS |
8 |
12.0 |
7.0 |
13.75 |
17.5 |
12.3 |
|
MODEL NO. |
LOADED CONTACTS |
CIRCUITS |
DIMENSIONS
|
|
|
|
A |
B |
C |
D |
E |

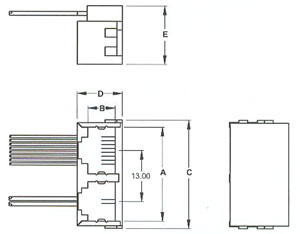

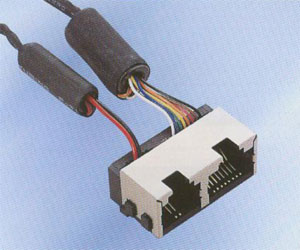

LMCJ-6P2C/8P8C |
6 POS
8 POS |
2
8 |
24.0 |
7.0 |
27.60 |
11.4 |
15.0 |
LMCJ-6P4C/8P8C |
6 POS
8 POS |
4
8 |
24.0 |
7.0 |
27.60 |
11.4 |
15.0 |
LMCJ-6P6C/8P8C |
6 POS
8 POS |
6
8 |
24.0 |
7.0 |
27.60 |
11.4 |
15.0 |
|
