MAGNETIC COMPONENTS
*Note: Customer designs are available to meet your requirement

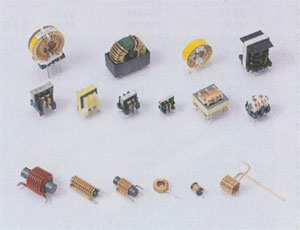

COMMON CHOKE & CHOKE
COMMON CHOKE & CHOKE
MAIN PRODUCTS
ITEM SPEC

TOROID 10 TO 58
EE EE-5 TO EE-55
UU UU-15, 17
ET ET-24, ET-28
EEL EEL-16, 19, 25
EP EP-10
CHOKE TYPE TOROID, R, DR, EE, EI

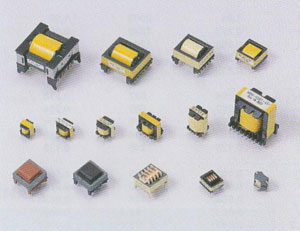

TRANSFORMER
TRANSFORMER
MAIN PRODUCTS
ITEM SPEC

EE EI-30 TO EI-114
Series EI & EE, ER
ETD, EF, PQ
RM

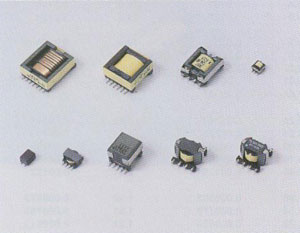

SMD TRANSFORMER
SMD TRANSFORMER
MAIN PRODUCTS
ITEM SPEC

EP 7, 10, 13
EE 5
EFD 12
RM 5,6

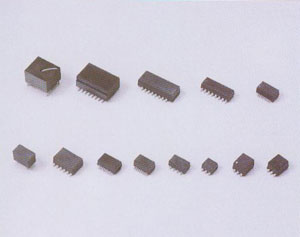

CAN BUS CHOKE
CAN BUS CHOKE
FEATURES
  • Through hole & surface mount package available
  • Current compensated chokes.
  • Core material: ferrite ring core.
  • Rated voltage 42Vac/80Vdc.
  • Operating temperature - 40°C to 125 °C
  • Transfer mould package for high reliability

Electrical Specification @25 °C

Part No. Turn ratio
±5%
±30%
Lp
µH
max.
LI
µH
DCR
max.

I 1:1 11 0.06 0.15
II 1:1 25 1.95 0.26
III 1:1 51 2.60 0.39
IV 1:1 470 0.26 0.32
V 1:1 1000 0.26 0.20
VI 1:1 4700 0.32 0.39

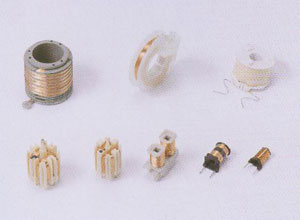

OTHER APPLICATION COIL
OTHER APPLICATION COIL


  • ANTENNA
  • COMMUNICATION
  • COUPLING
  • FILTER
  • RELAY

  • TIMER
  • TRIGGER
  • SOLENOID
  • STEPPING
  • SPRING
